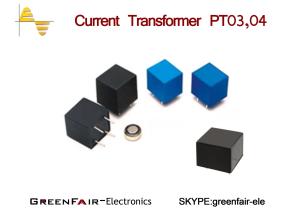

PT03 & PT04 series Current potential transformer PT04-1mA/1mA frequency 50-20KHz excellent linearity high precision
Features:
1. With high permeability core, excellent linearity, low profile, heavy resistor load
2. It is applicable for working frequency 50-20KHz
3. With burnt-resistant PBT case and epoxy resin, current transformer can reach insulation resistance of 500VDC ≥100mΩ, electrical strength 3000VAC,1mA 60S.
4. Under the ambient temperature -25℃ ~75℃, PT01 serires are main applied in electrical energy meter, power transducer, electrical monitoring system, RTU.
For our current transformers, which are produced by using high permeability permalloy core or good quality laminated silicon steel core, inflammable epoxy resin and case with our high precision toroidal winding machine & current transformer testers, steady quality and reliable safety, are widely applied in electronic energy meter, power transducer, RTU, electronical monitoring meter, power factor compensator, digital meter, motor control, industrial control system, electrical meter equipment, etc.
PT03
PT04
| Performance & Specification |
| Function |
Input voltage (V) |
Output voltage (V) |
linear (%) |
Direct resistance load capacity (Ω)max |
AC resistance (Ω)max at at 25℃ |
Current ratio |
Outline |
| P/N |
| PT03 |
0~1000 |
0~2.5 |
0.1 |
500 |
300 |
0.5mA/0.5mA |
PT03 |
| 0~1000 |
0~2.5 |
0.1 |
500 |
250 |
1mA/1mA |
| 0~1000 |
0~5 |
0.1 |
1000 |
250 |
2mA/2mA |
| PT04 |
0~1000 |
0~3 |
0.05 |
500 |
300 |
0.5mA/0.5mA |
PT04 |
| 0~1000 |
0~2.5 |
0.1 |
500 |
250 |
1mA/1mA |
| 0~1000 |
0~5 |
0.1 |
1000 |
250 |
2mA/2mA |
For example
PT04-1mA/1mA
| ELECTRICAL CHARACTERSTIC: |
| NO. |
ITEM |
MEASURED POINT |
TECHNICAL DATA |
REMARK |
| 1 |
INPUT VOLTAGE |
1--2 |
0-550V |
1mA r=550KΩ |
| 2 |
OUTPUT VOLTAGE |
3--4 |
1.7V ±5% |
RL=1700Ω |
| 3 |
DC RESISTANCE |
1--2&3--4 |
250Ω MAX |
AT25℃ |
| 4 |
FREQUECNCY |
|
45/65HZ |
|
| 5 |
WHITSTAND VOLTAGE |
P--S |
4000VAC 1mA 60S |
|
| 6 |
Operating Temperature |
|
-30℃~70℃ |
|
| 7 |
IR |
|
500VDC >100MΩ |
|
| 8 |
ACCURACY |
|
0.1% |
|
| MATERIAL LIST: |
| NO. |
ITEM |
MATERIALS |
REMARK |
| 1 |
CORE |
Ø14*20*10 PERMALLOY |
|
| 2 |
WIRE |
2UEW Ø0.08mm |
E85640 |
| 3 |
CASE |
PT04 BURN-RESISTANT PBT |
E58491(S) |
| 4 |
TAPE-P |
CT-280 W=15mm YLW |
E165111 |
| 5 |
TERMINALS |
4PIN φ0.8*35 |
|
| 6 |
EPOXY |
3300A/B |
E218090 |
